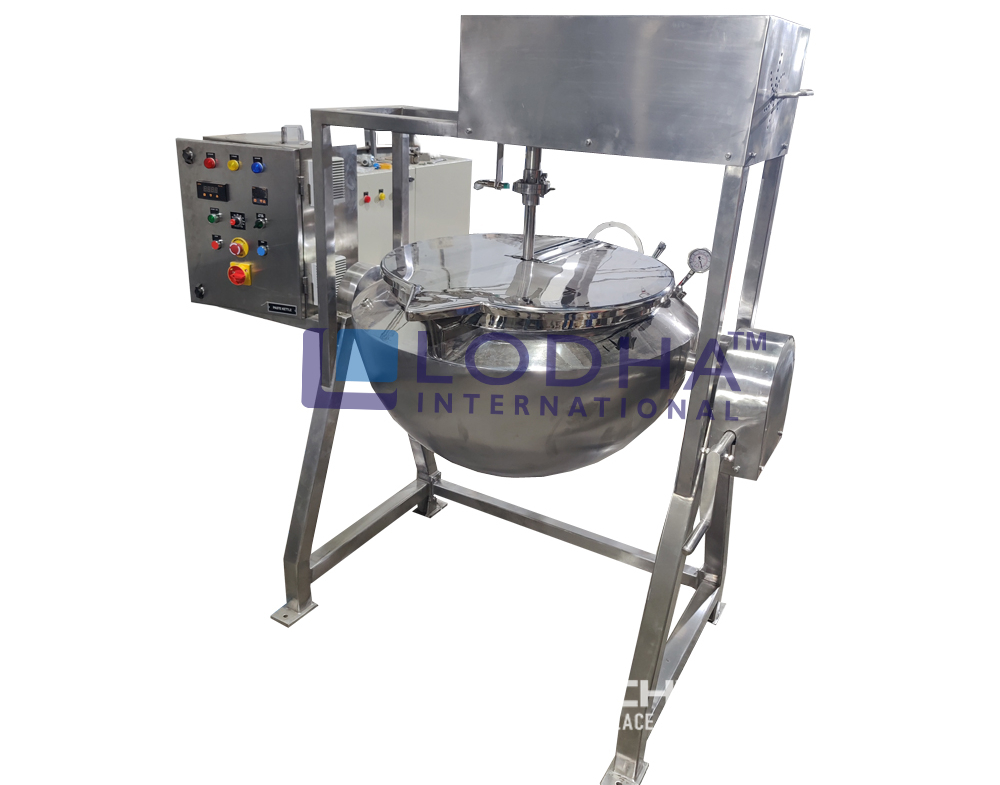

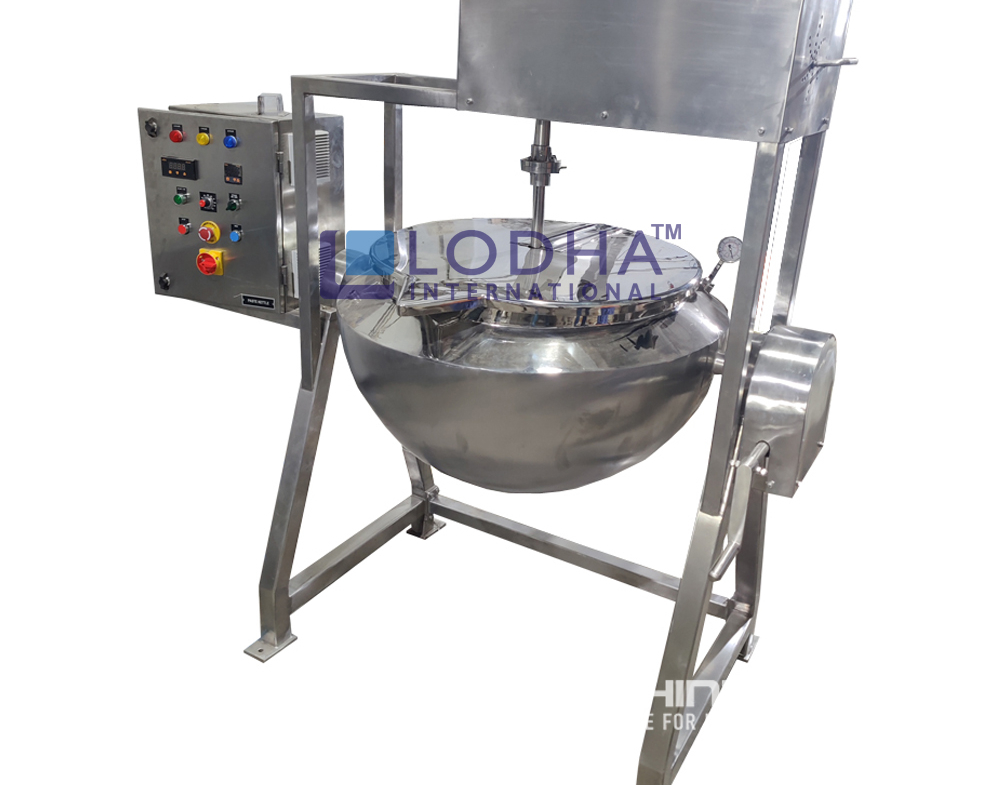

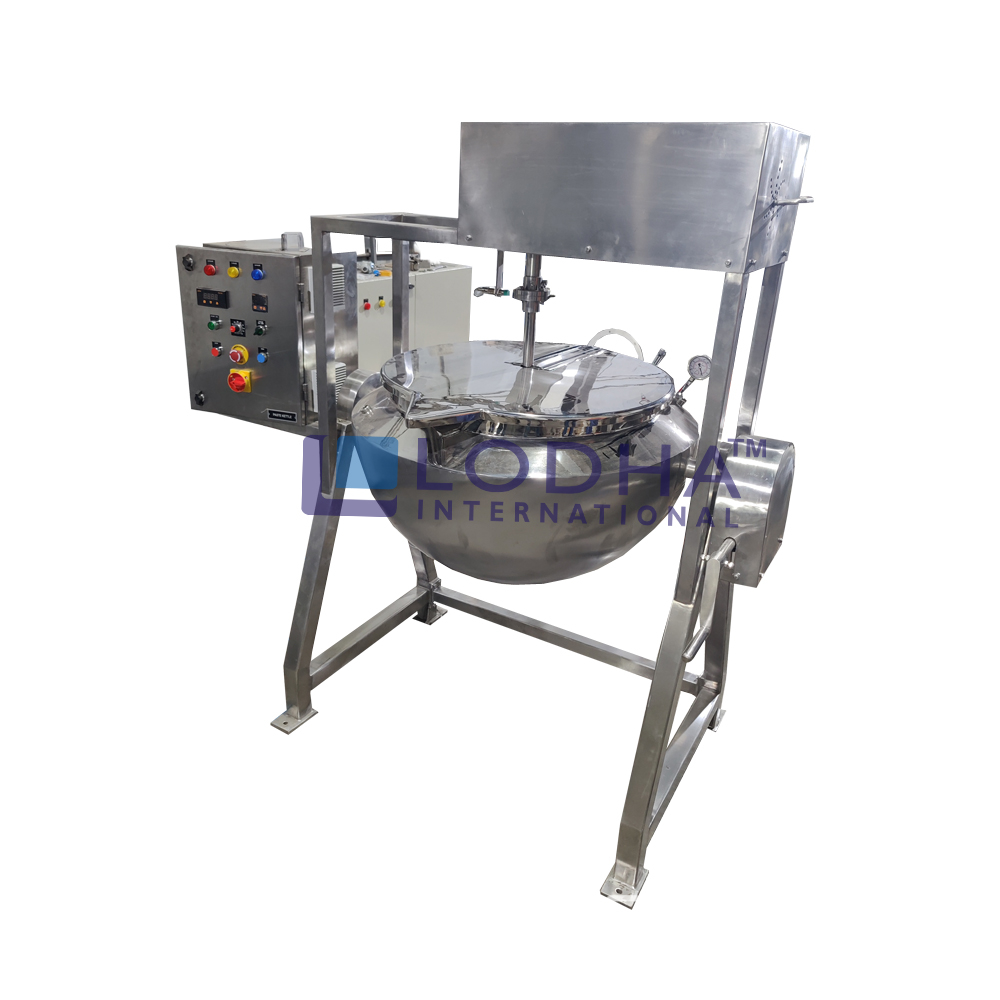

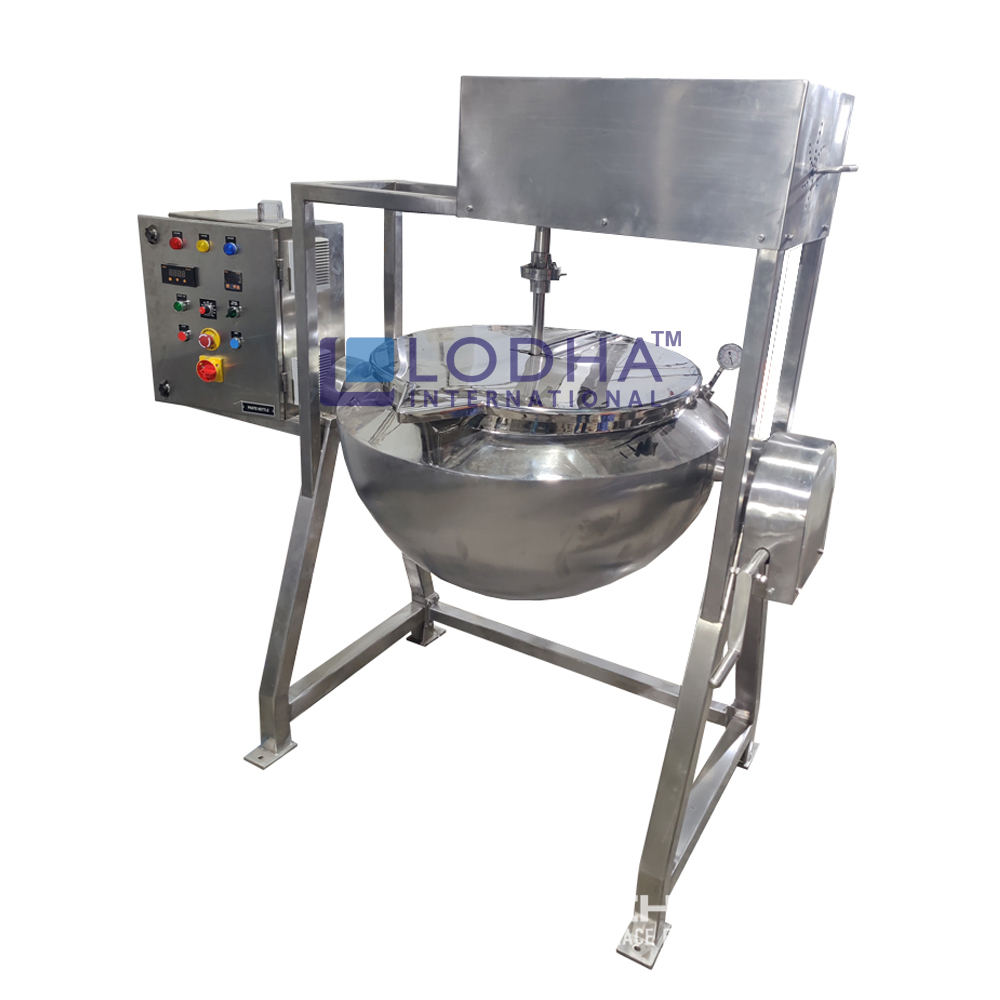

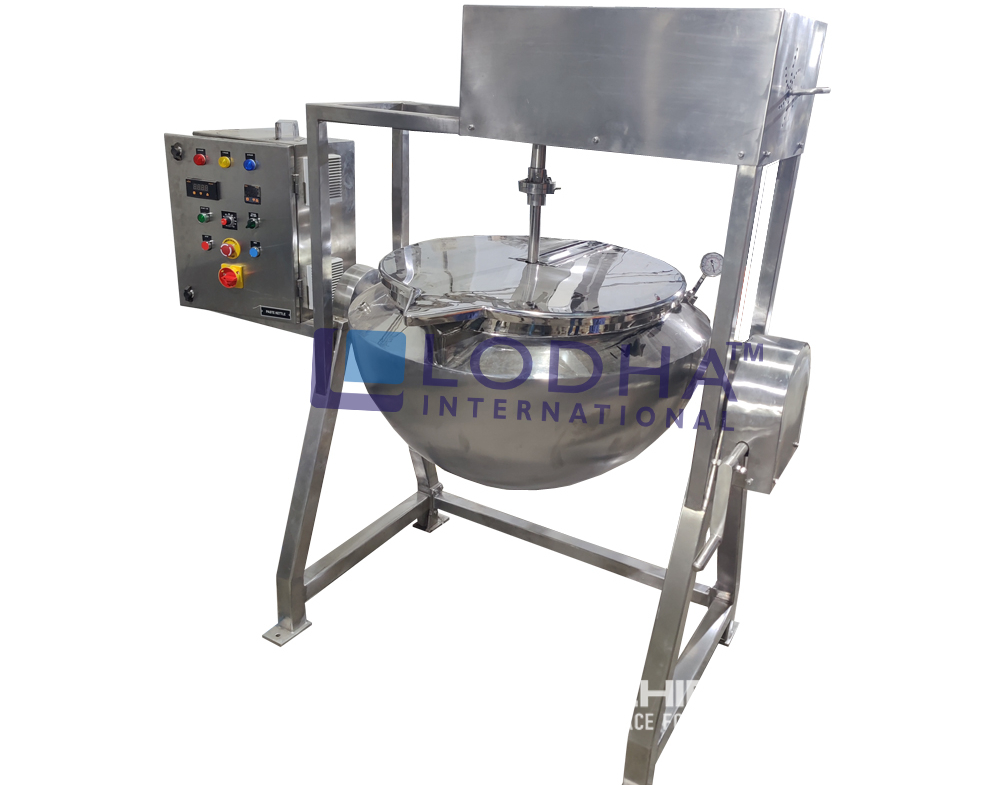

LODHA Starch Paste Kettle

Starch Paste Kettle is used for preparation of binder materials which are highly used in medicine and food industries. Machine has an electrically heated jackets, thus eliminating the need of providing a steam connection for heating. It also eliminates the need to tilt the vessel to empty it contents by providing an outlet valve at the bottom of the hemispherical vessel which can emptied directly into containers which can be kept beneath it. This makes the handling of the hot starch paste much safer for the operators.

Features:

All contact parts made of SS316 as per GMP standards

Hemispherical Design for proper mixing paste

Jacket provided with steam/thermic/fluid heating arrangement

Driven via motor and gear box assembly mounted on top

Tilting arrangement for kettle is provided for discharge for starch paste

Anchor type impeller design for proper mixing of paste

Safe earthing system



Salient Features:

All contact parts from SS316 and non-contact SS304

Mounting Stand from SS304

Top Drive with German make Gear Box

Main Drive with VFD for fine control of Impeller Speed

Discharge via Tilting

With inbuilt heating element jacket



Model Output (In Liter) LI-SPK 25 25 LI-SPK 50 50 LI-SPK 75 75 LI-SPK 100 100 LI-SPK 150 150 LI-SPK 200 200
